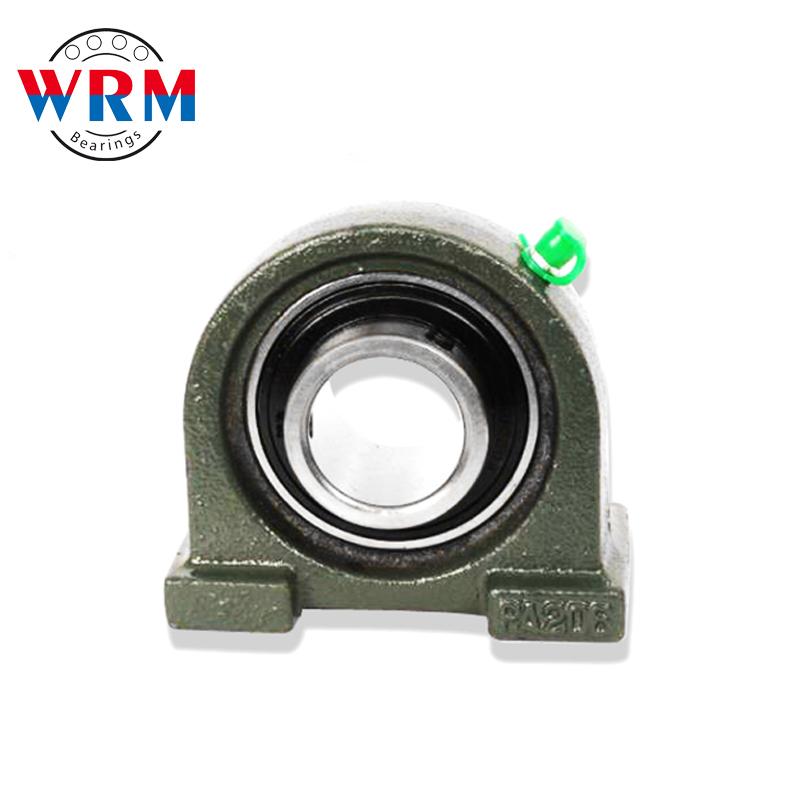

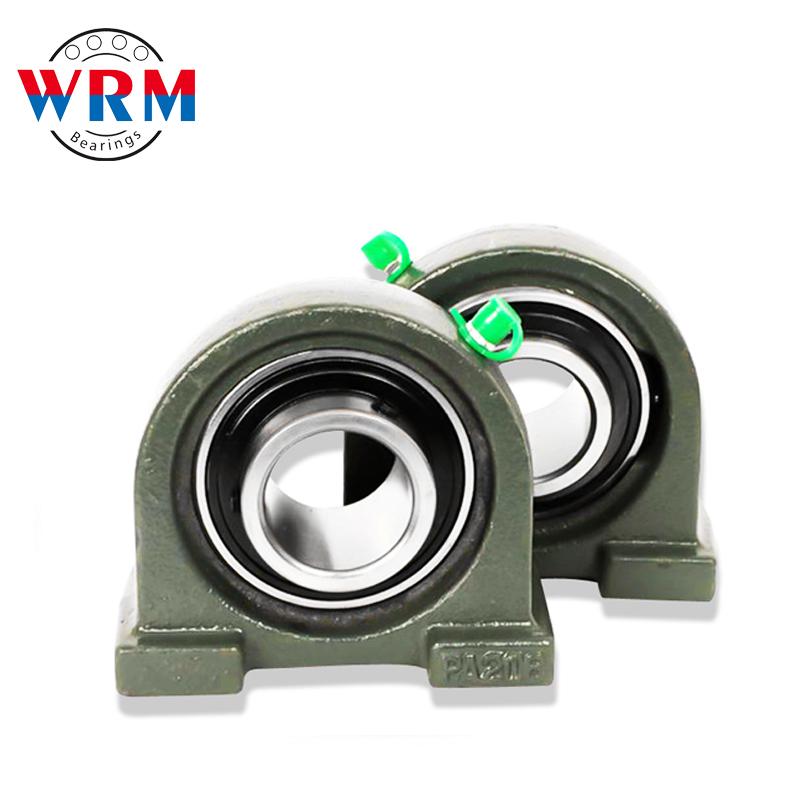

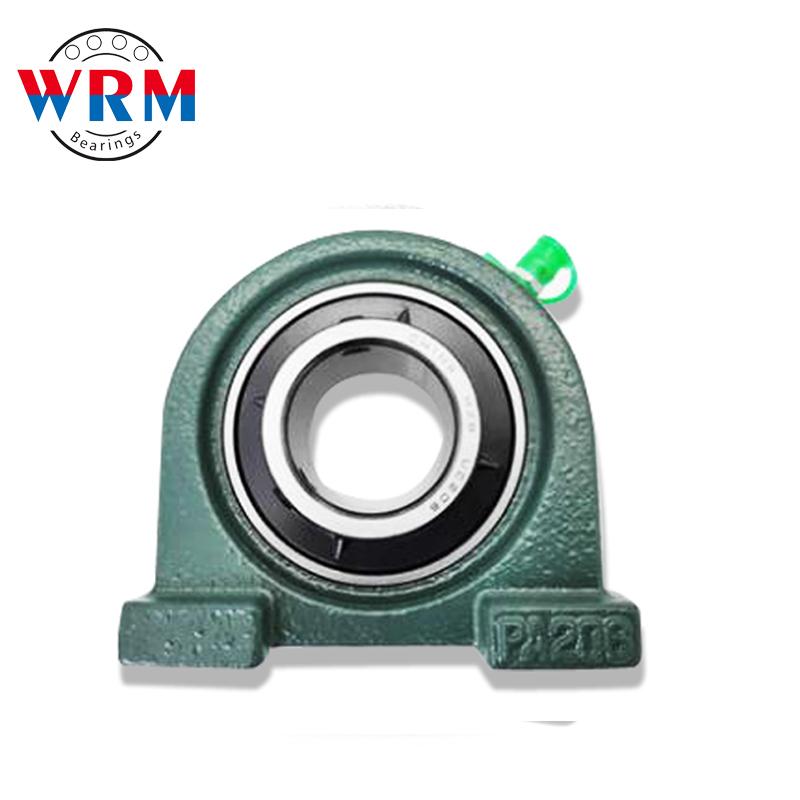

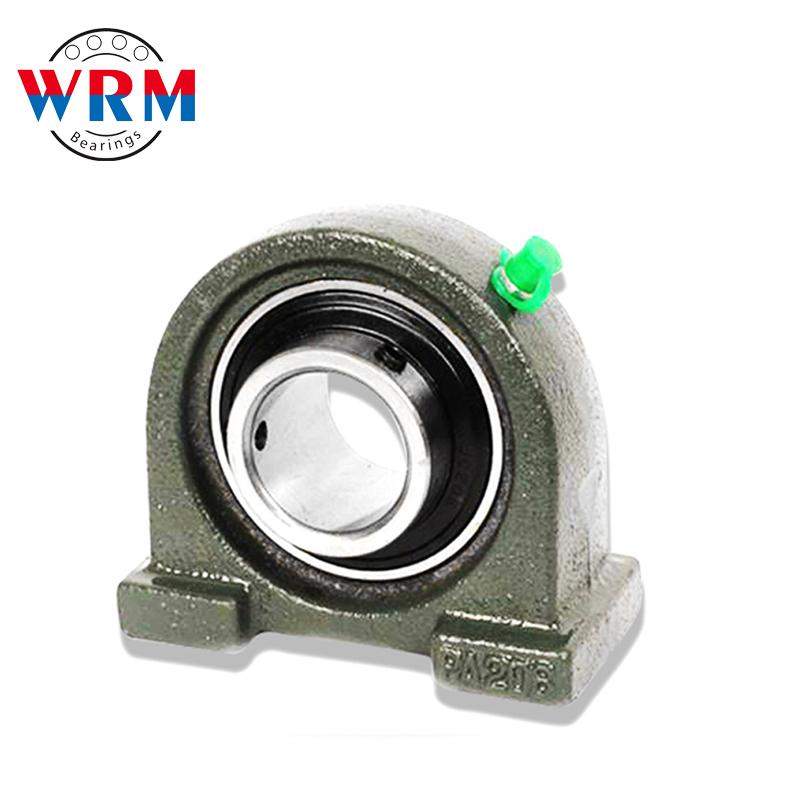

Pillow Block bearings UCPA201

Insert bearing with housing has various forms of structure, good versatility and interchangeability.
At the same time, the bearings are also designed to have a certain degree of tuning, easy to install, with a double structure sealing device, can work in harsh environments.
The bearing seat is generally cast.
Common seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T), etc.

Pillow Block bearings

Description

Product Name	Pillow Block Bearing UCPA201
Material	Bearing steel、Cast Steel、Stainless steel
Inside diameter	12-65mm
Outside Diameter	30.2-76.2mm
Packing	According to the buyer requests for packaging

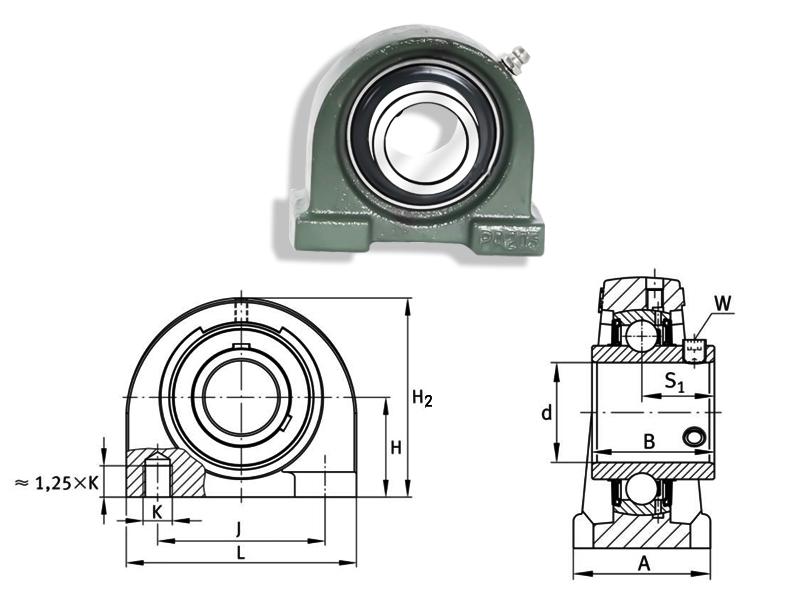

Model	Old Model	Principal Dimension(mm)						Bolt	Weight（kg)
Model	Old Model	d	H	H2	J	L	B	Bolt	Weight（kg)
UCPA201	ZA90501	12	30.2	62	52	76	31	M10	0.65
UCPA202	ZA90502	15	30.2	62	52	76	31	M10	0.64
UCPA203	ZA90503	17	30.2	62	52	76	31	M10	0.63
UCPA204	ZA90504	20	30.2	62	52	76	31	M10	0.643
UCPA205	ZA90505	25	36.5	72	56	84	34.1	M10	0.892
UCPA206	ZA90506	30	42.9	84	66	94	38.1	M14	1.2
UCPA207	ZA90507	35	47.6	95	80	110	42.9	M14	1.7
UCPA208	ZA90508	40	49.2	100	84	116	49.2	M14	1.9
UCPA209	ZA90509	45	54.2	108	90	120	49.2	M14	2.2
UCPA210	ZA90510	50	57.2	116	94	132	51.6	M16	2.6
UCPA211	ZA90511	55	63.5	125	104	140	55.6	M16	3
UCPA212	ZA90512	60	69.9	138	114	151	65.1	M16	4.24
UCPA213	ZA90513	65	76.2	150	124	160	65.1	M16	6.23
