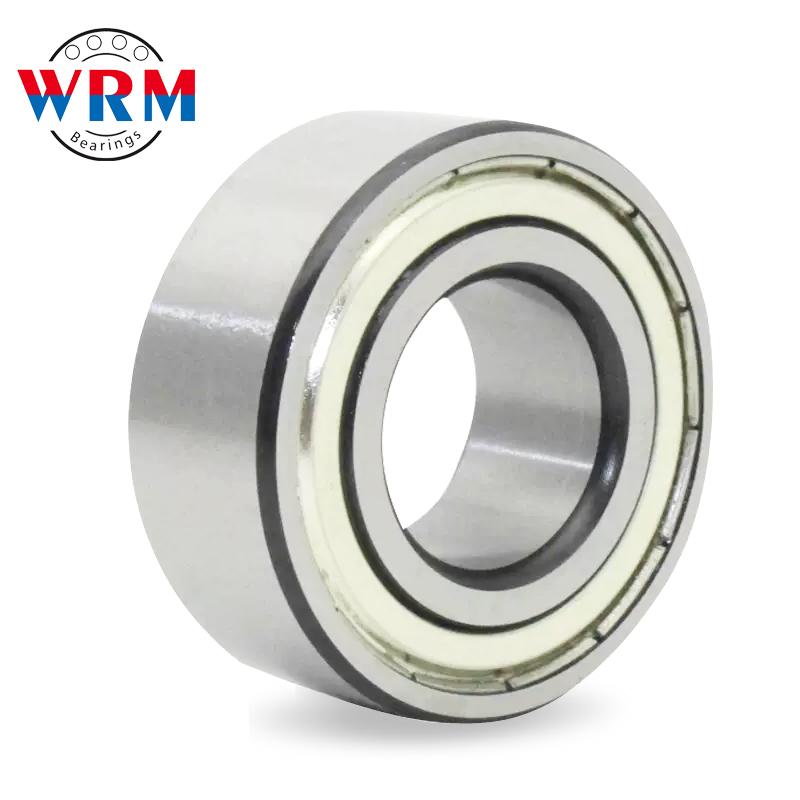

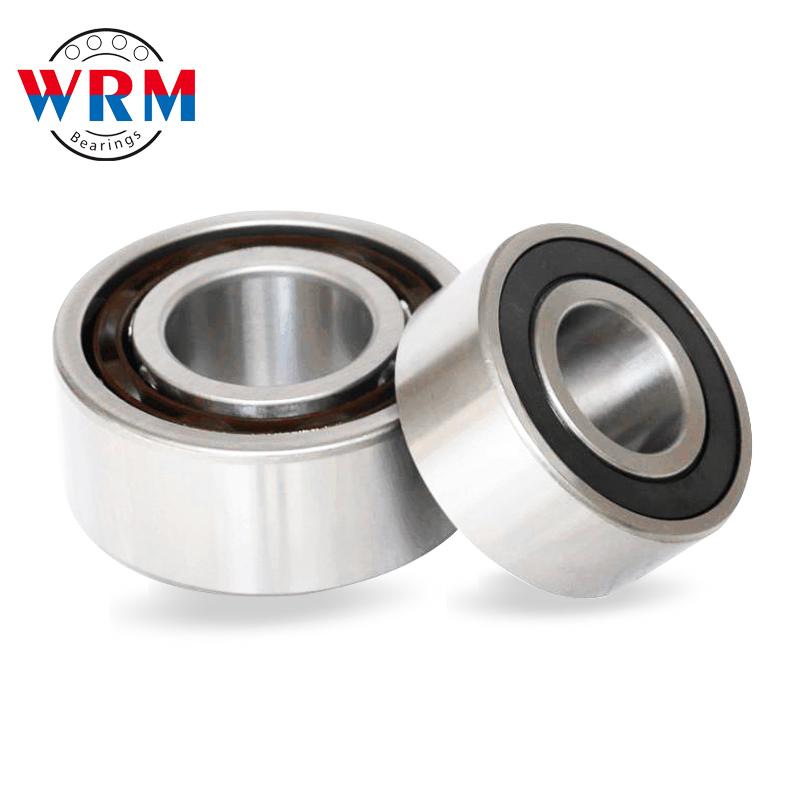

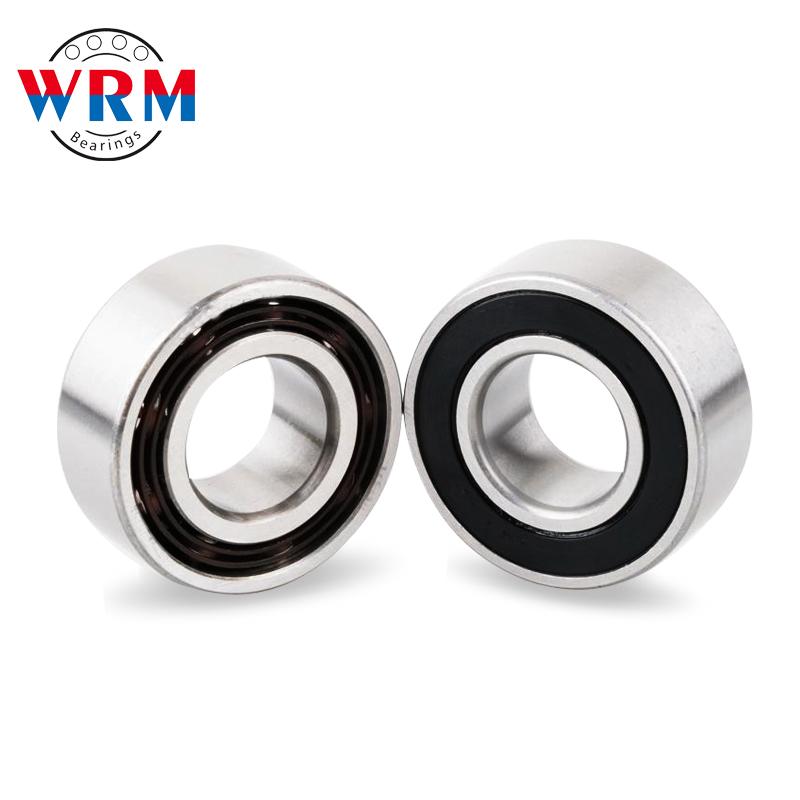

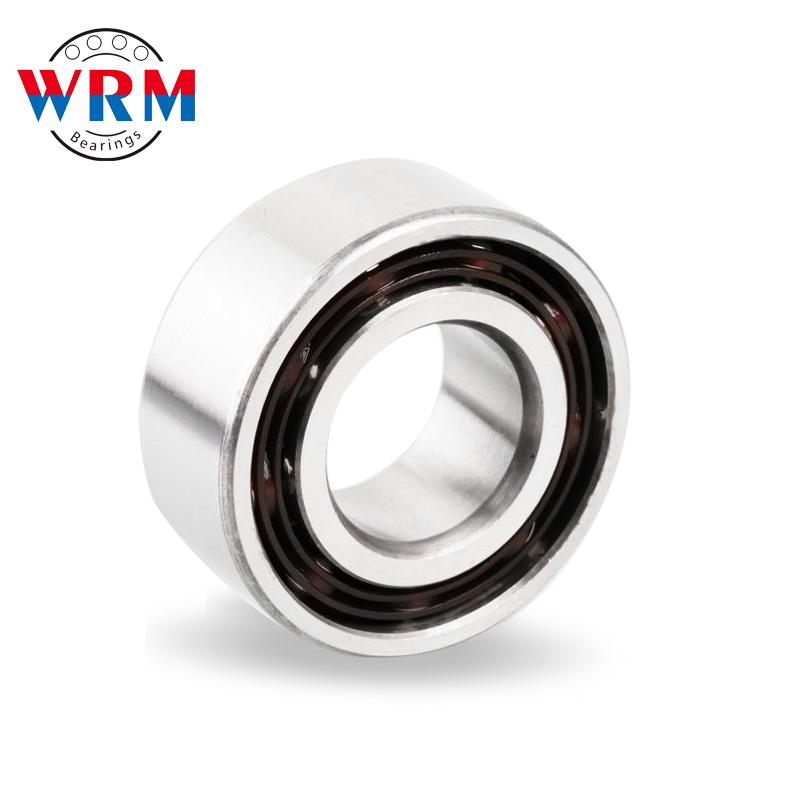

Angular Contact Ball Bearings 3200

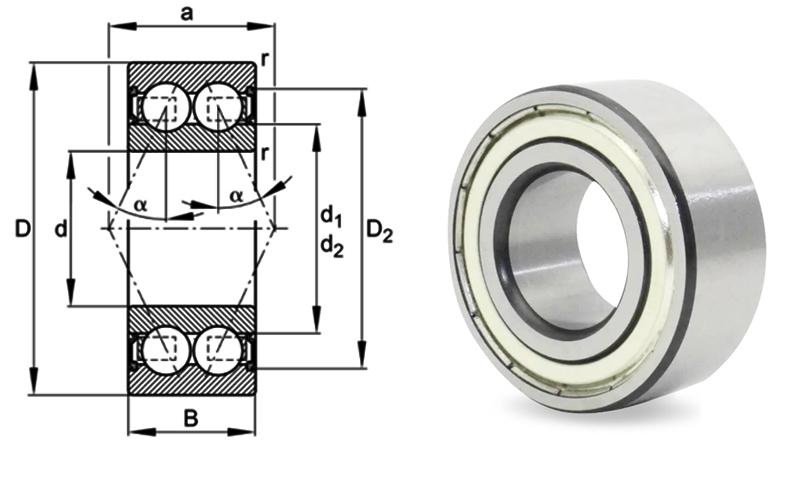

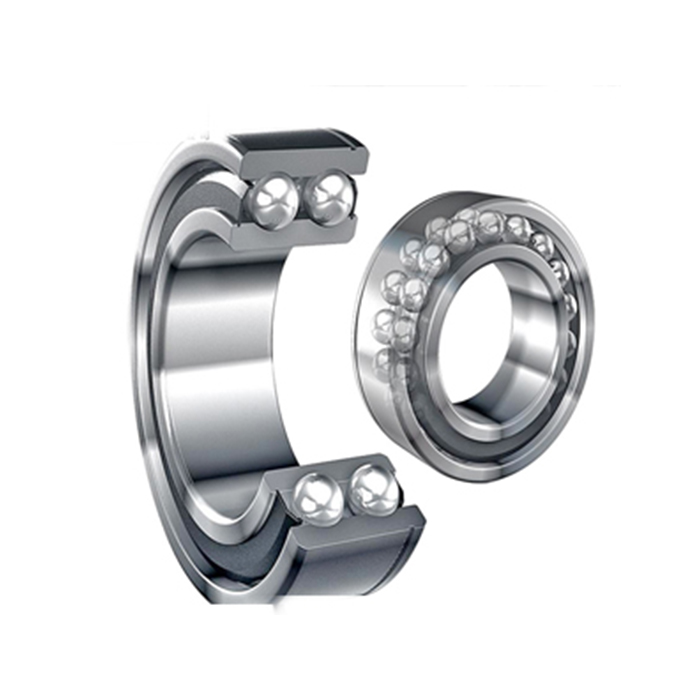

The design of double-row angular contact ball bearings is basically the same as that of single-row angular contact ball bearings, but occupies less axial space.The double-row angular contact ball bearing can bear radial load and axial load acting in two directions, it can limit the axial displacement of the shaft or housing in two directions, the contact Angle is 30 degrees.Provides high rigidity bearing configuration, and can withstand overturning torque.

Description

Product Name	Angular Contact Ball Bearings 3200
Material	Chrome Steel
Inside diameter	10-90mm
Outside Diameter	30-160mm
Packing	According to the buyer requests for packaging

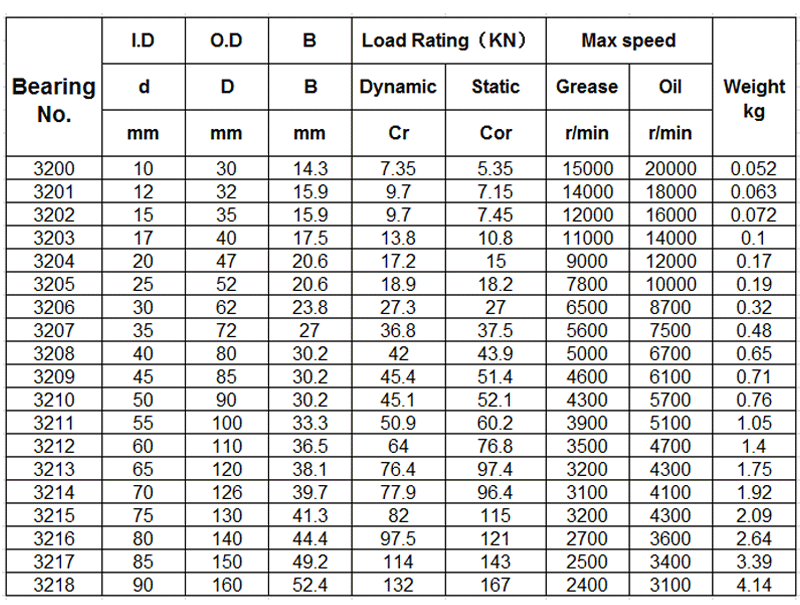

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
3200	10	30	14.3	7.35	5.35	15000	28000	0.052
3201	12	32	15.9	9.7	7.15	14000	18000	0.063
3202	15	35	15.9	9.7	7.45	12000	16000	0.072
3203	17	40	17.5	13.8	10.8	11000	14000	0.1
3204	20	47	20.6	17.2	15	9000	12000	0.17
3205	25	52	20.6	18.9	18.2	7800	10000	0.19
3206	30	62	23.8	27.3	27	6500	8700	0.32
3207	35	72	27	36.8	37.5	5600	7500	0.48
3208	40	80	30.2	42	43.9	5000	6700	0.65
3209	45	85	30.2	45.4	51.4	4600	6100	0.71
3210	50	90	30.2	45.1	52.1	4300	6100	0.76
3211	55	100	33.3	50.9	60.2	3900	5700	1.05
3212	60	110	36.5	64	76.8	3500	5100	1.4
3213	65	120	38.1	76.4	97.4	3200	4700	1.75
3214	70	126	39.7	77.9	96.4	3100	4300	1.92
3215	75	130	41.3	82	115	3200	4100	2.09
3216	80	140	44.4	97.5	121	2700	4300	2.64
3217	85	150	49.2	114	143	2500	3600	3.39
3218	90	160	52.4	132	167	2400	3400	4.14
