Ceramic Bearing 6900

Ceramic bearing, as an important mechanical base part, takes the lead in the world of new materials for its high temperature resistance and super strength due to its incomparable performance.
In recent ten years, it has been widely used in various fields of national economy and people's livelihood.

Ceramic Bearings

Description

Product Name	Ceramic Bearing 6900
Material	Chrome Steel
Inside diameter	10-300mm
Outside Diameter	22-420mm
Packing	According to the buyer requests for packaging

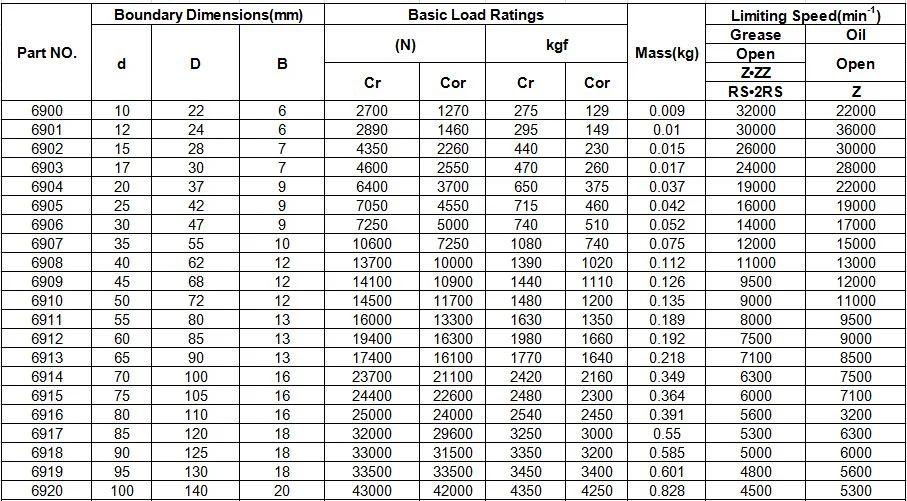

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight (kg)
Designation	d	D	B	Cr	Cor	Grease	Oil	Weight (kg)
6900	10	22	6	275	129	32000	22000	0.009
6901	12	24	6	295	149	30000	36000	0.01
6902	15	28	7	440	230	26000	30000	0.015
6903	17	30	7	470	260	24000	28000	0.017
6904	20	37	9	650	375	19000	22000	0.037
6905	25	42	9	715	460	16000	19000	0.042
6906	30	47	9	740	510	14000	17000	0.052
6907	35	55	10	1080	740	12000	15000	0.075
6908	40	62	12	1390	1020	11000	13000	0.112
6909	45	68	12	1440	1110	9500	12000	0.126
6910	50	72	12	1480	1200	9000	11000	0.135
6911	55	80	13	1630	1350	8000	9500	0.189
6912	60	85	13	1980	1660	7500	9000	0.192
6913	65	90	13	1770	1640	7100	8500	0.218
6914	70	100	16	2420	2160	6300	7500	0.349
6915	75	105	16	2480	2300	6000	7100	0.364
6916	80	110	16	2540	2450	5600	3200	0.391
6917	85	120	18	3250	3000	5300	6300	0.55
6918	90	125	18	3350	3200	5000	6000	0.585
6919	95	130	18	3450	3400	4800	5600	0.601
6920	100	140	20	4350	4250	4500	5300	0.828
6921	105	145	20	4300	4300	4300	5300	0.856
6922	110	150	20	4450	4550	4300	5000	0.893
6924	120	165	22	5400	5500	3800	4500	1.21
6926	130	180	24	6650	6850	3400	4000	1.57
6928	140	190	24	6800	7300	3200	3800	1.67
6930	150	210	28	8650	9200	2600	3200	3.01
6932	160	220	28	8850	9800	2600	3000	2.71
6934	170	230	28	8750	9850	2400	2800	3.34
6936	180	250	33	12100	13100	2200	2600	4.91
6938	190	260	33	11500	13000	2200	2600	5.18
6940	200	280	38	14600	16100	2000	2400	7.28
6944	220	300	38	149	173	1800	2200	7.88
6948	240	320	38	157	194	1700	2000	8.49
6952	260	360	46	210	268	1200	1600	13.7
6956	280	380	46	210	268	1100	1400	15
6960	300	420	56	270	370	1000	1300	21.1
