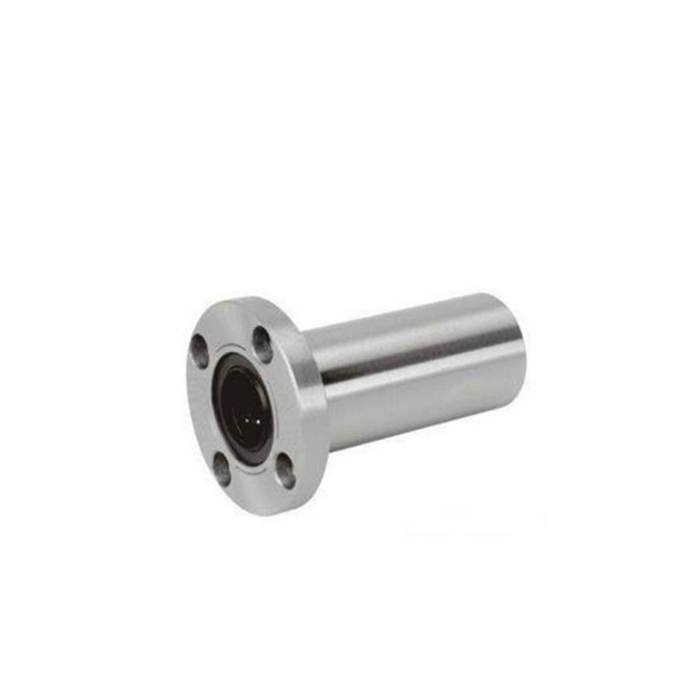

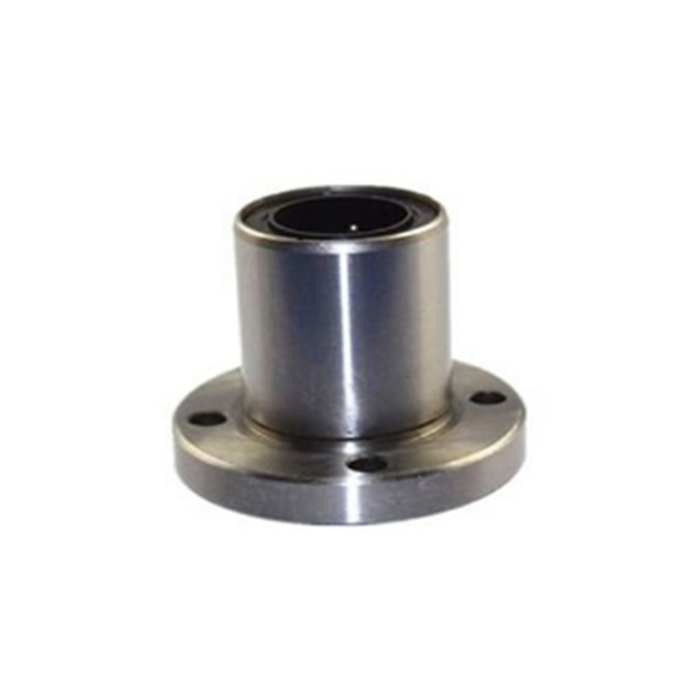

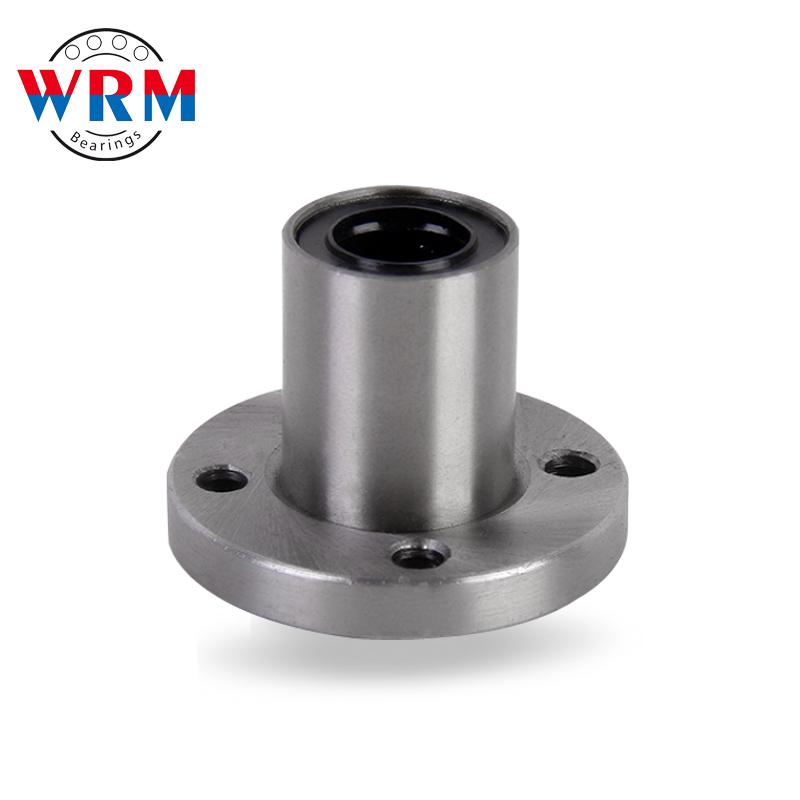

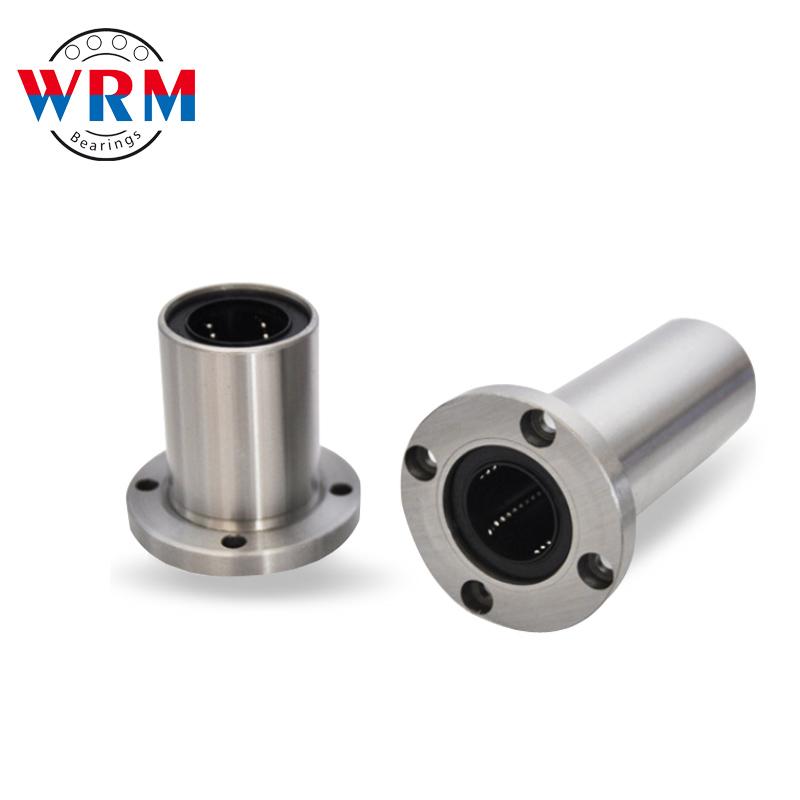

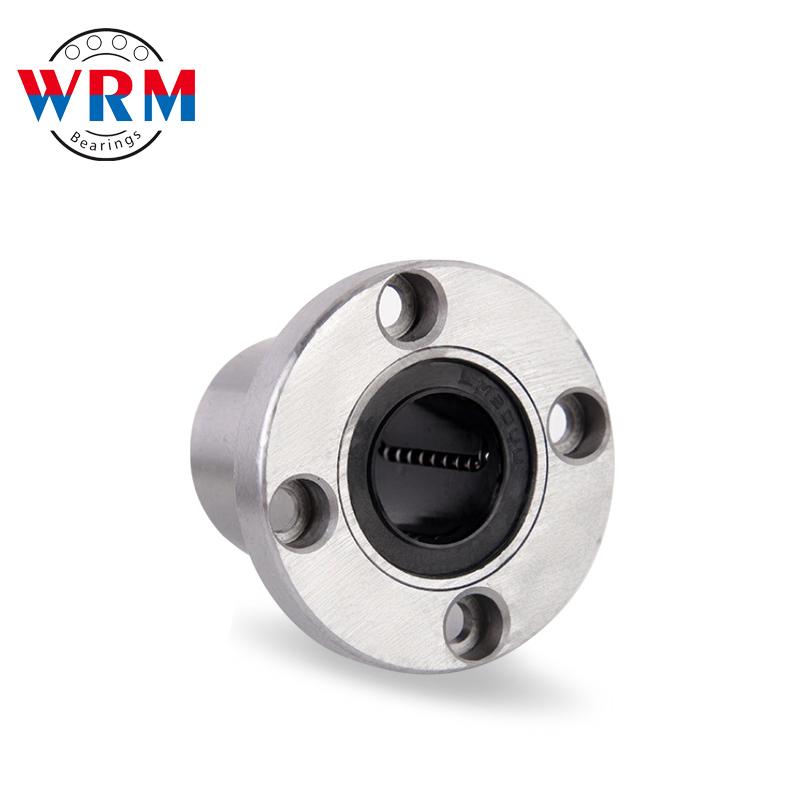

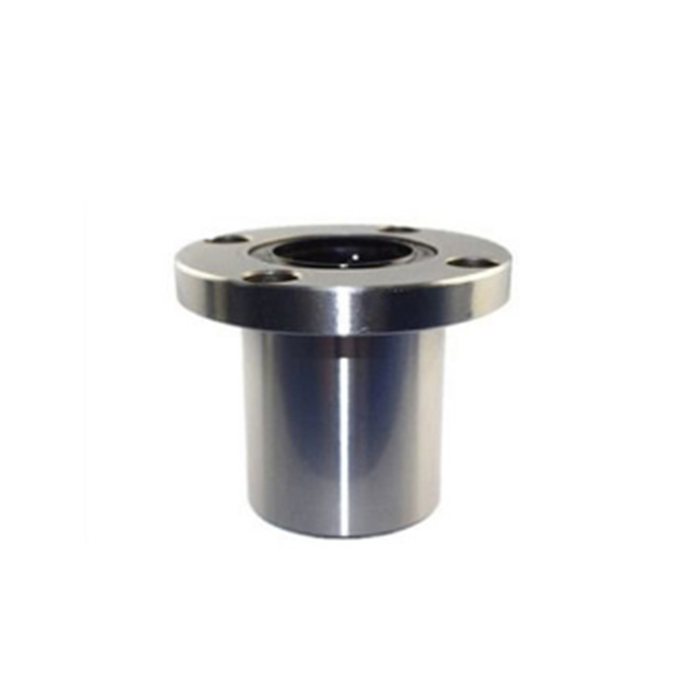

Linear Bearing LMF20

Linear bearing is a linear motion system produced at low cost. It is used for the combination of infinite stroke and cylindrical shaft.
Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding components.

Description

Product Name	Linear Bearing LMF20
Material	Chrome Steel
Inside diameter	20-500mm
Outside Diameter	35-600mm
Packing	According to the buyer requests for packaging

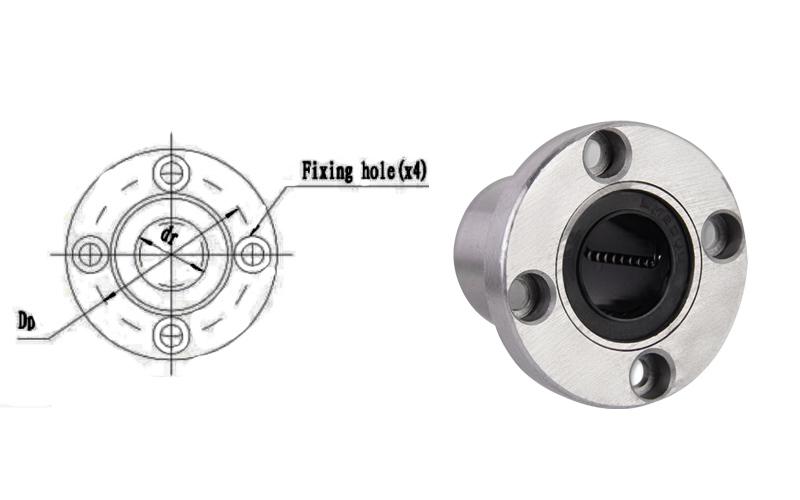

Model NO.	Dimensions				NO.of ball rows	Basic Load Ratings		Weight （g）
Model NO.	d	D	L	D1	NO.of ball rows	CN	CON	Weight （g）
LMF8	8	15	24	32	4	170	220	0.034
LMF10	10	18	29	39	4	370	540	0.078
LMF12	12	21	30	42	4	140	590	0.076
LMF13	13	23	32	43	4	500	770	0.094
LMF16	16	28	37	48	5	770	1170	0.134
LMF20	20	32	42	54	5	860	1370	0.18
LMF25	25	40	59	62	6	980	1560	0.34
LMF30	30	45	64	74	6	1560	2740	0.46
LMF35	35	52	70	82	6	1660	3130	0.795
LMF40	40	60	80	96	6	2150	4010	1.054
LMF50	50	80	100	116	6	3820	7930	2.2
LMF60	60	90	110	134	6	4700	9990	2.96
