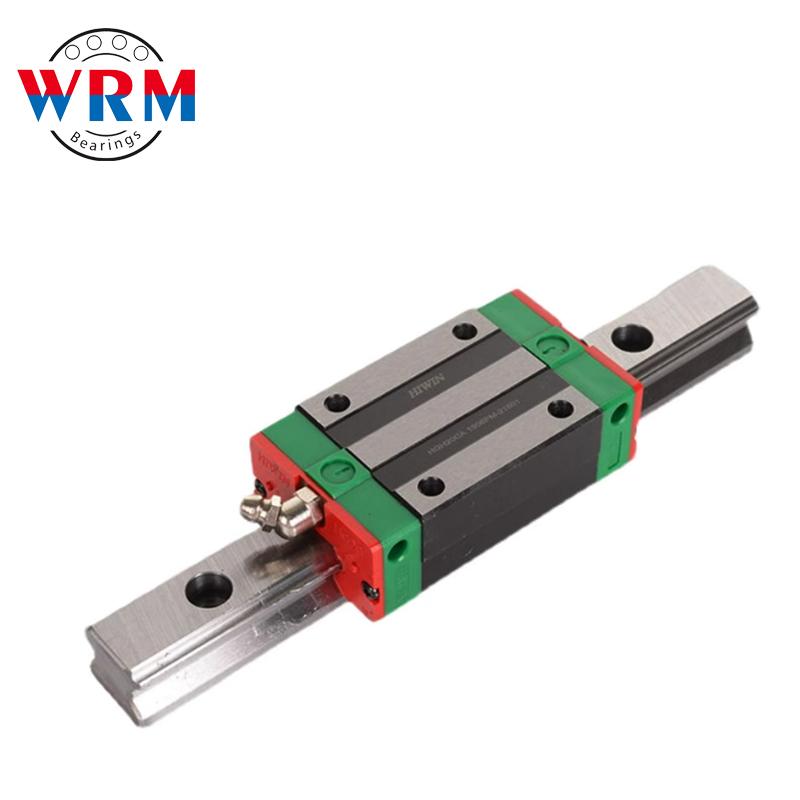

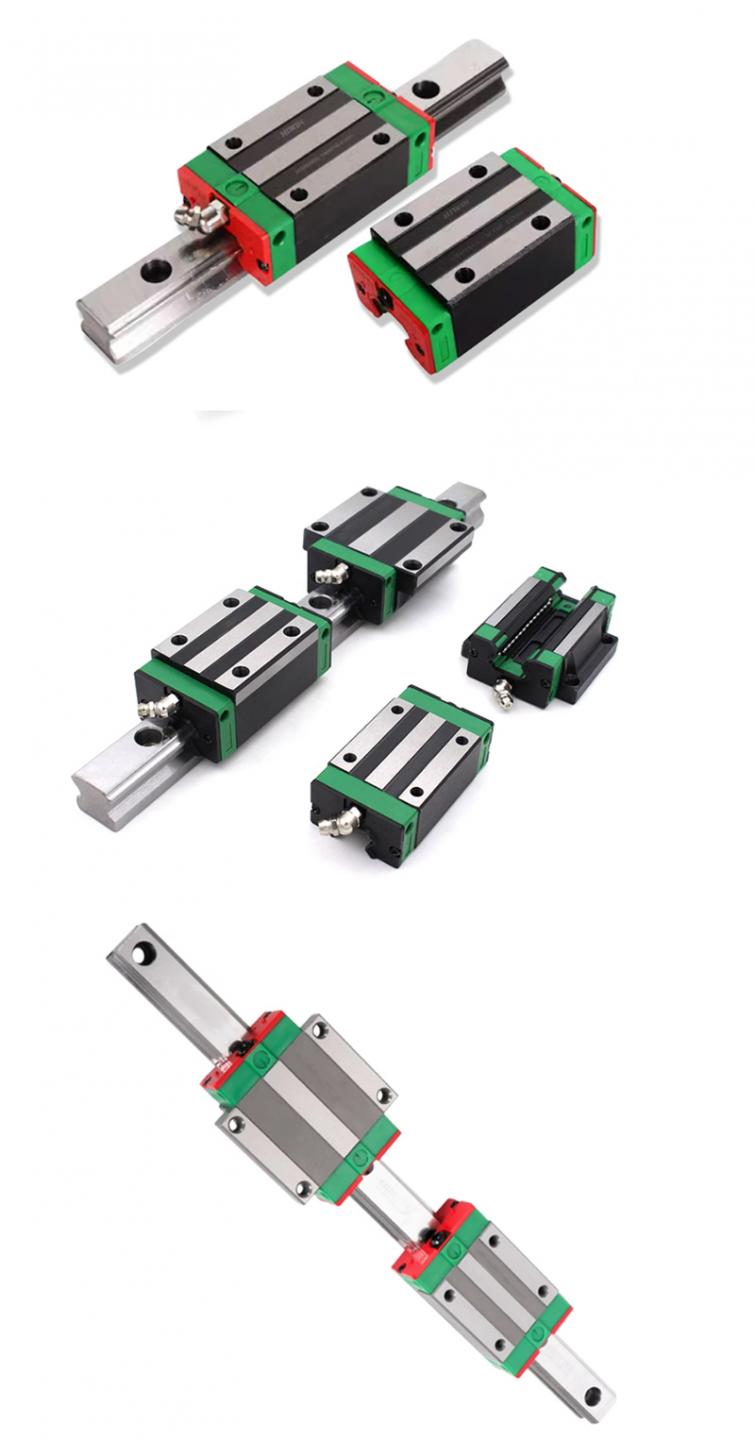

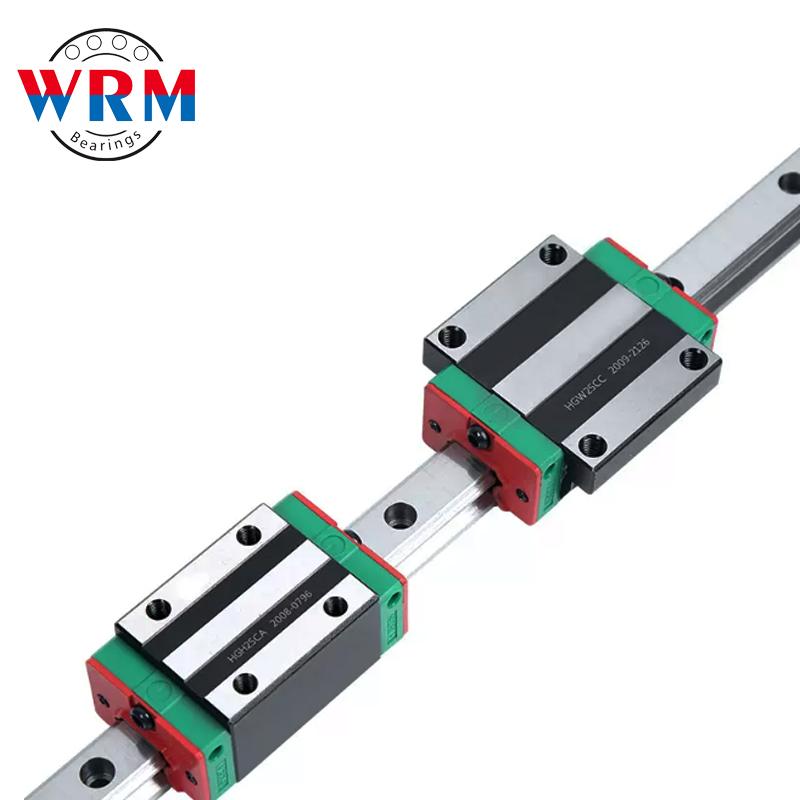

Linear Slide Block HGH45

Linear bearings are mainly used in more automatic machinery, such as machine tools imported from Germany, bending machine, laser welding machine and so on, of course, linear bearings and straight bobbin are used together.
Like linear guide is mainly used in high precision mechanical structure, linear guide moving elements and fixed elements do not need intermediate medium, but with rolling steel ball.

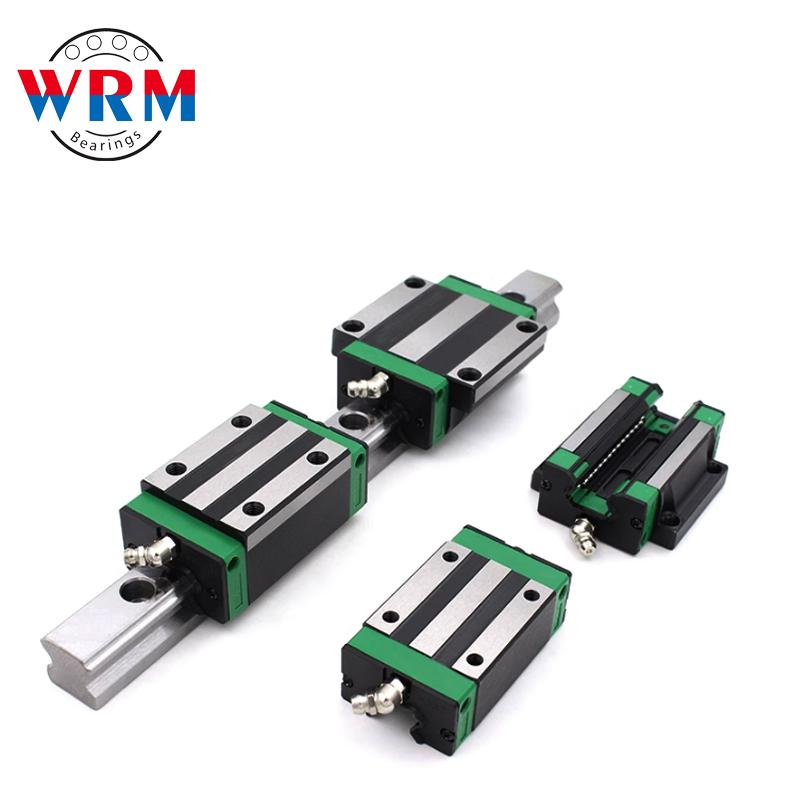

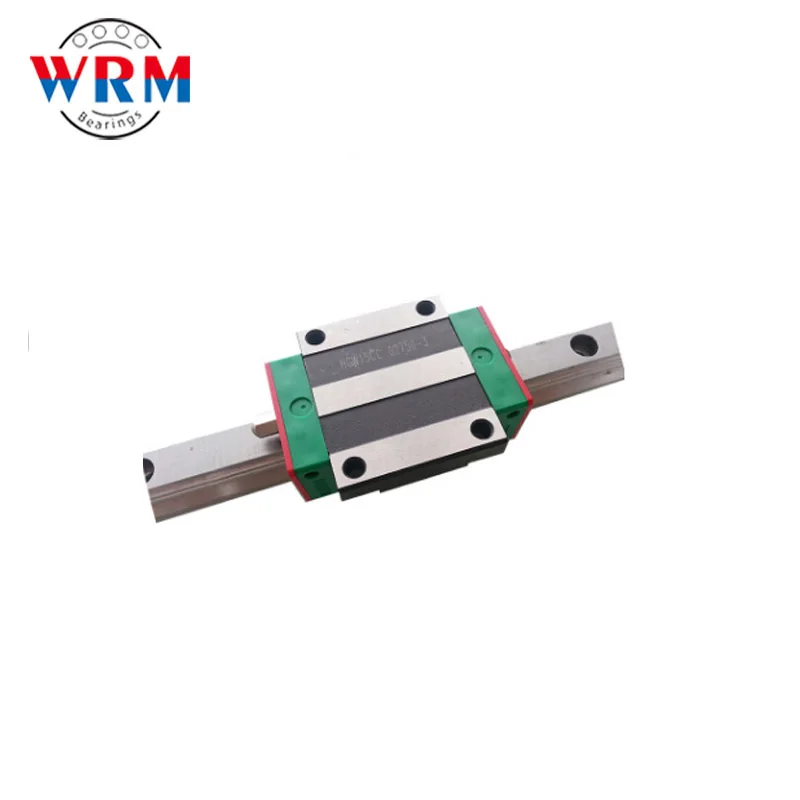

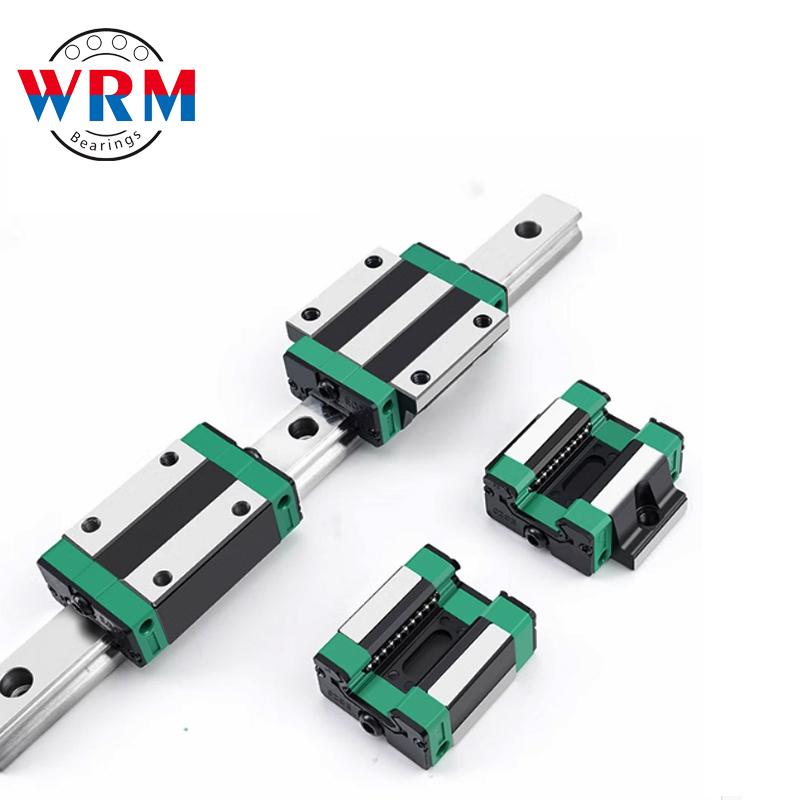

Linear Guide

Description

Product Name	Linear Guide HGH15
Material	Chrome Steel
Inside diameter	20-150mm
Outside Diameter	40-300mm
Packing	According to the buyer requests for packaging

NO.	L	B	Mounting holes long	Mounting holes Width	Combination of high	Guide rail mounting screws
HGH15	61.4	34	26	26	28	M4
HGH20	77.5	44	36	32	30	M5
HGH25	84	48	35	35	40	M6
HGH30	97.4	60	40	40	45	M8
HGH35	112.4	70	5o	50	55	M8
HGH45	139.4	86	60	60	70	M12
HGW15	61.4	47	30	38	24	M4
HGW20	77.5	63	40	53	30	M5
HGW25	84	70	45	57	36	M6
HGW30	97.4	9o	52	72	42	M8
HGW35	112.4	100	62	82	48	M8
HGW45	139.4	120	80	100	60	M12

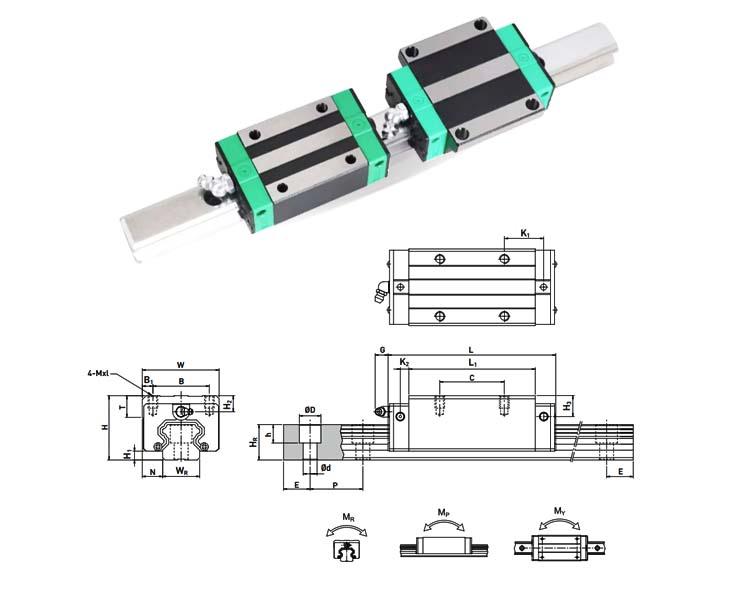

Part Number	Guide rail size (mm)							Basic rated load		Permissible static moment			Weight（Kg）
	Guide rail size (mm)							Basic rated load		M(R)	M(P)	M(Y)	sliding blockt	guide rail
	w	H	D	h	d	p	E	Cr/KN	Cor/KN	KN-m	KN-m	KN-m	kg	kg/m
HG15	15	15	7.5	5.3	4.5	60	20	11.38	25.31	0.17	0.15	0.15	0.14	1.45
HG25	23	22	l1	9	7	60	20	26.48	56.19	0.64	0.15	0.51	0.42	3.12
HG30	28	26	14	12	9	80	20	38.74	83.06	1.06	0.85	1.85	0.78	4.47
HG35	34	29	14	12	9	80	20	46.25	102.87	1.4	1.2	1.2	1.14	6.3
HG45	45	38	20	17	14	105	22.5	77.57	155.93	3.01	2.35	2.08	2.08	10.41
HG55	53	44	23	20	16	120	s0	114.44	227.81	5.66	4.06	4.06	3.25	15.08
