Taper Roller Bearing 31305

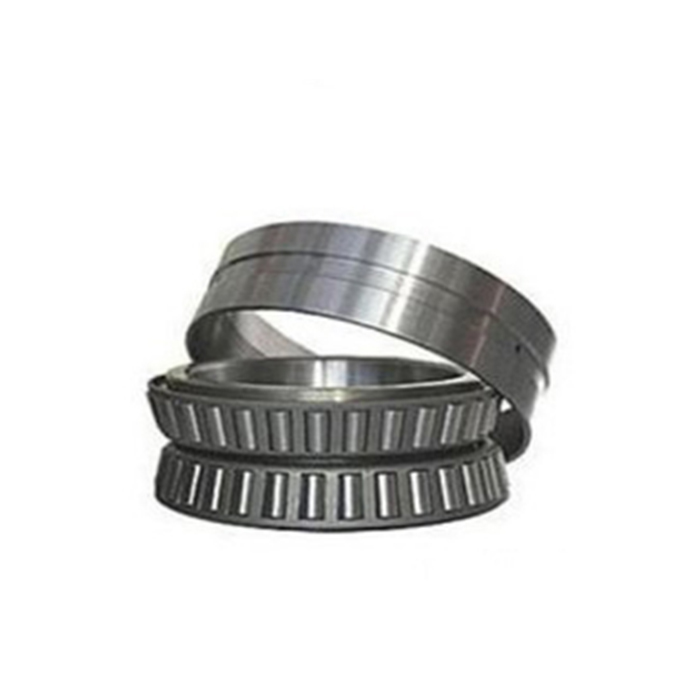

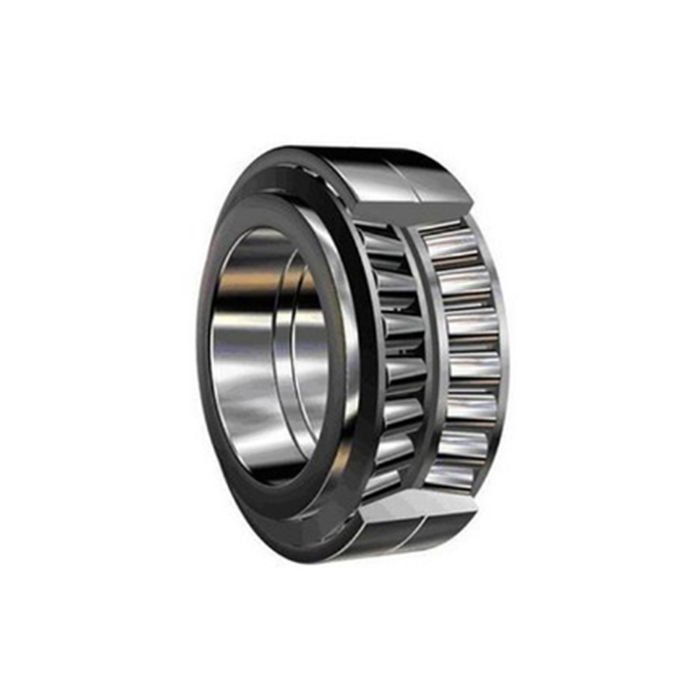

The double-row tapered roller bearing has various structures, including a double raceway outer ring and two inner rings, and a spacer between the two inner rings. The clearance can be adjusted by changing the thickness of the spacer.
This type of bearing can bear both radial load and bidirectional axial load, and can limit axial displacement of the shaft and housing within the axial clearance range of the bearing.

Description

_02

Product Name	Tapered roller bearing 31305-31318
Material	Chrome Steel
Inside diameter	25-90mm
Outside Diameter	62-190mm
Packing	According to the buyer requests for packaging

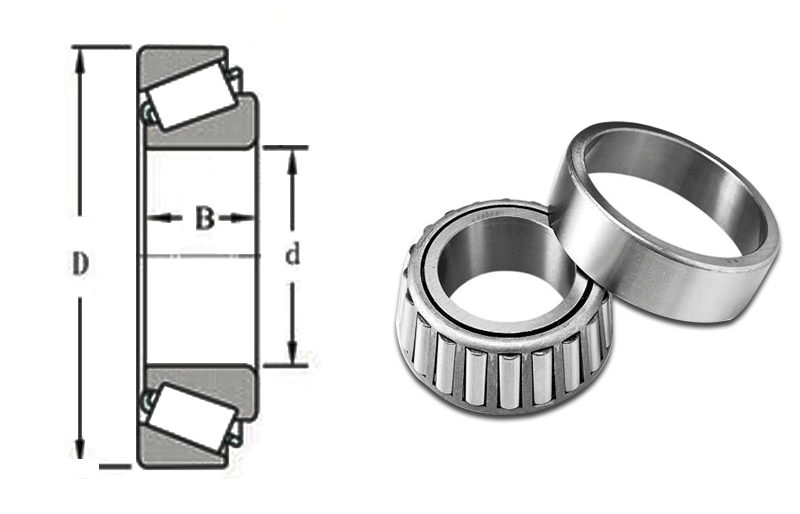

Designation	Principal Dimension			Basic Load Ratings（KN）		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
31305	25	62	17	40.5	46	6300	8000	0.262
31306	30	72	21	52.5	60.5	5600	7000	0.392
31307	35	80	21	65.8	76.8	5000	6300	0.514
31308	40	90	23	81.5	96.5	4500	5600	0.727
31309	45	100	25	95.5	115	4000	5000	0.944
31310	50	110	27	108	128	3800	4800	1.21
31311	55	120	29	130	158	3400	4300	1.56
31312	60	130	31	145	178	3200	4000	1.9
31313	65	140	33	165	202	2800	3600	2.37
31314	70	150	35	188	230	2600	3400	2.86
31315	75	160	37	208	258	2400	3200	3.38
31316	80	170	39	230	288	2200	3000	4.05
31317	85	180	41	255	318	2000	2800	4.69
31318	90	190	43	282	358	1900	2600	5.46
31319	95	200	45	310	400	1800	2400	6.46
31320	100	215	51	372	488	1600	2000	8.59
31321	105	225	53	398	525	1500	1900	9.58
31322	110	240	57	458	610	1400	1800	12.1
31324	120	260	86	825	1230	1300	1700	22.1
31326	130	280	66	592	805	1100	1500	18.4
31328	140	300	70	678	928	1000	1400	22.8
31330	150	320	75	772	1070	950	1300	27.4
